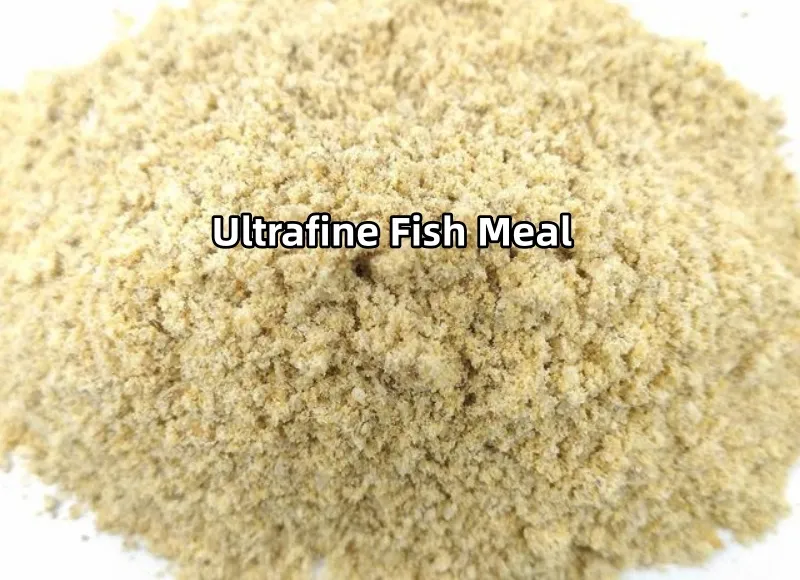

Fish meal is a high-protein feed ingredient widely used in aquaculture and livestock feed. It offers high nutritional value, but conventional fish meal is relatively coarse (typically D50 above 100–500 μm), which limits digestibility and absorption efficiency. By applying ultrafine grinding technology to produce superfine fish meal, its digestibility, solubility, and bioavailability can be significantly improved—especially in feeds for juvenile livestock and aquatic larvae. A particle size of D50 ≤ 50 μm is generally regarded as the ultrafine range, where the specific surface area increases markedly and nutrients are released more effectively.
An Air Classifier Mill (ACM) integrates mechanical impact grinding with dynamic air classification and is widely used in food, feed, and chemical industries for ultrafine processing. This article explores whether an ACM can stably achieve fish meal fineness of D50 ≤ 50 μm, and analyzes its technical feasibility, influencing factors, and application prospects.
Principle of ACM Equipment and Its Advantages in Ultrafine Grinding
The core components of an ACM include a high-speed rotating impact rotor (hammer or pin type) and a built-in dynamic classifier wheel. After entering the grinding chamber, the material is pulverized by high-speed impact and inter-particle collisions. Fine particles are carried upward by airflow into the classification zone, where the classifier wheel uses the balance of centrifugal force and airflow to achieve precise particle size separation. Qualified fine powder is discharged, while coarse particles are returned to the grinding zone for further processing.
Compared with traditional hammer mills or ball mills, ACMs offer the following advantages:
- Integrated classification: Grinding and classification are completed in one step, eliminating the need for external classifiers and preventing over-grinding.
- Controllable particle size: By adjusting classifier wheel speed, airflow rate, and rotor speed, D50, D90, and other parameters can be precisely controlled.
- Low-temperature processing: Airflow removes heat efficiently, making ACM suitable for heat-sensitive materials such as fish meal, which is rich in proteins and lipids and prone to oxidation or denaturation.
- Narrow particle size distribution: High product uniformity with minimal mixing of coarse and fine particles.
Typical ACM systems can achieve D97 of 10–100 μm, with D50 adjustable from about 5 to 50 μm. Many models can easily reach D50 < 20 μm.
Feasibility Analysis of Processing Fish Meal with ACM
Fish meal mainly consists of protein (60–70%), fat (around 10%), moisture, and ash. It is a moderately hard, oil-containing, heat-sensitive material. Conventional mechanical grinding tends to generate excessive heat, leading to protein denaturation or lipid oxidation. The low-temperature, airflow-based design of ACM effectively mitigates these issues.
Technical evidence supporting feasibility:
- Epic Powder ACM systems are suitable for food protein materials such as fish meal, with standard fineness of D97 < 20 μm, corresponding to a D50 well below 50 μm.
- For similar protein-based materials (e.g., gelatin and soybean meal), ACM processing can stably control D50 in the range of 10–40 μm.
- Studies on ultrafine fish meal show that when particle size reaches 30–50 μm, digestibility improves by more than 20%. The built-in classifier of ACM ensures a narrow particle size distribution (low Span value) and high stability.
Potential Challenges and Solutions
- Oil-related adhesion: Lipids in fish meal may cause material to adhere to the chamber walls. Solutions include using CIP-designed ACMs for easy cleaning, adding anti-caking agents, and maintaining low-temperature airflow to reduce stickiness.
- Moisture control: Fish meal with moisture content above 10% tends to agglomerate. Pre-drying to below 8% or using ACMs with cooling functions is recommended.
- Throughput vs. fineness trade-off: Achieving extremely fine sizes (D50 < 20 μm) may reduce capacity. A multi-stage process (coarse pre-grinding followed by ACM fine grinding) can address this issue.
Overall, these challenges can be effectively managed through proper equipment selection and process optimization, ensuring high operational stability.
Application Prospects and Benefits
Processing ultrafine fish meal (D50 ≤ 50 μm) with ACM offers significant benefits:
- Enhanced nutrition: Finer particles increase protein digestibility by 15–30%, ideal for premium aquaculture feeds.
- Expanded functionality: Ultrafine fish meal can serve as a functional ingredient in pet food and nutritional supplements.
- Higher economic value: Improved product performance leads to higher added value and market premiums.
- Environmental efficiency: ACM systems feature low energy consumption and minimal dust emissions, supporting green and sustainable processing.
Conclusion
Using an Air Classifier Mill (ACM) to process fish meal can not only achieve D50 ≤ 50 μm ultrafine particle size, but also maintain stable, continuous production with uniform particle size distribution and consistent product quality. Thanks to its low-temperature operation, precise classification, and suitability for protein-rich food materials, ACM is an ideal solution for ultrafine fish meal grinding. It is recommended that manufacturers conduct pilot trials and optimize process parameters based on specific fish meal characteristics to achieve the best results. This technology will further drive the fish meal industry toward higher value-added and more refined processing.
